Truck Types

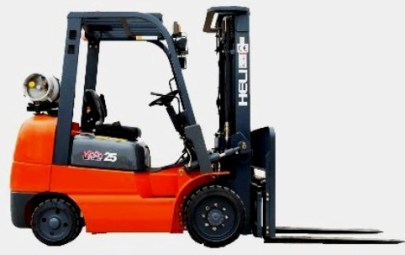

Standard forklift. The standard forklift, also known as a counterbalanced sit-down lift truck, is the vehicle most people think of when they think Lift truck or Forklift. It is available with any of the fuel types and tire types as well as numerous weight capacities, lift heights and attachment options.

The smaller 3000 lb to 4000 lb trucks are the workhorses of most warehouses. If you are running a small operation and will only have one truck, this is probably the vehicle for you. The standard forklift is a wide aisle truck which requires at least 11' aisles to turn in. The aisle width is determined by the size of the truck, the turn radius, and the size of the load. Available options and attachments include side shifts, fork shifts, hydraulic clamps, and slip sheet attachments, to name a few. Standard forklifts are usually used for lift heights under 20 feet.

Reach tuck. a.k.a. Stand-up reach, Straddle reach , Double-deep reach. The reach truck is a narrow aisle (8'-10') truck designed specifically for racked pallet storage. It consists of outriggers in front and telescoping forks that use a hydraulic scissors-type mechanism that allows you to pick up the load and retract it over the outriggers. This reduces the overall truck and load length, allowing you to turn in a narrower aisle. Double-deep reach trucks use an extended reach mechanism which allows you to store pallets two deep in specially designed double-deep rack. Reach trucks are designed for racking areas only and do not work for loading trucks or quickly moving loads over distances. Operator training on reach trucks tends to take longer than on other vehicles due to the complexity of the controls.

Reach trucks are available with lift heights up to 40 feet, however, I don't recommend using them over 30 feet as it becomes very difficult to place loads at that height and puts a lot of strain on the operator's neck and eyes.

Motorized pallet truck. a.k.a. Walkie, Walkie-rider, Rider.. Motorized pallet trucks are the motorized version of the pallet jack. They come in "Walkie" versions or "Rider" versions. As you would expect the walkie is designed for the operator to walk along with the truck as they move loads, while the Rider has a small platform which the operator stands on. The riders work great for frequent moving of loads over extended distances within warehouses and manufacturing operations. They are fast and highly maneuverable. Minimal controls result in short learning curves for operators although precision turning takes a little practice. Since there is no operator safety cage, there are some safety concerns with these and I do not recommend them for transporting tall unstable loads. If you are looking for an inexpensive method for moving loads from point A to point B, a rider may the answer. If you are moving heavy loads short distances and are looking for an employee-friendly option to the pallet jack, check out a walkie.

Order selector a.k.a. Order picker. Designed specifically for manual handling of less-than-pallet-load quantities in racking. Man-up design has fixed forks attached to a platform which elevates the load and the operator to facilitate manual loading and unloading from racking. Order Selectors are very narrow aisles vehicles which operate in aisles of less than 6'. Order selectors are available in lift heights up to 40 feet however 20 to 30 foot models are more common.

Swing masts, Turret trucks, and other VNA pallet handling vehicles.. Swing mast and turret trucks are very narrow aisle vehicles designed to work in aisles less than 6'. A swing mast truck resembles a standard forklift with the exception that there is an additional function to swing the mast to a 90 degree angle (only one direction) to allow stocking pallets perpendicular to direction of the truck's travel. The swing operation can get a little wobbly at heights so you must make sure you have stable secure loads (check links page for link to Drexel Industries for more info on swing masts). Most turret trucks are man-up vehicles similar to an order selector with the exception that rather than fixed forks the forks are mounted on an additional mast and carriage which operates as a turret turning 90 degrees in either direction facilitating picking and stocking on either side of the aisle. The man-up design makes it easer to handle loads in very tall racking (up to 40 feet). Man-down versions of turret trucks are also available. They are less expensive than the man-up versions and are better when rack heights are less than 30 feet. Very narrow aisle trucks are generally recommended to be used in conjunction with a guidance system (wire, rails, optical) within the aisles to increase safety and reduce property damage. Also, man-up turret trucks operating with tall racking require that the floor be perfectly flat and level to operate correctly. These more complex pieces of equipment have more mechanical problems than standard lift trucks and you can subsequently expect more downtime and higher service costs. These cost can be easily offset in large warehouses by the space saved by going to 6' aisles.

Attachments / Options

There is an enormous variety of attachments and options available for lift trucks. While most attachments are designed for use on standard lift trucks, some of them are also used on reach trucks and VNA trucks. It's important to note that OSHA requires that any attachment used must be approved for use by the specific lift truck manufacturer. This regulation pretty much forces you to go through the OEM dealer for the purchase and installation of the attachment. Also note that most attachments will change the capacity of the lift truck and a new placard should be placed on the truck showing the new specs. Below I will list some of the more common types of attachments.

Sideshift. This is the most common attachment and, as I stated earlier, should be considered standard equipment. The sideshift device allows the fork carriage to slide left and right to allow more accurate placement of the load. Sideshifts will increase productivity and safety as well as reduce product damage by allowing the operator more flexibility in load placement.

Fork positioner. Fork Positioners allow the operator to adjust the distance between the forks without getting off of the truck. Used primarily in high volume operations where there is a great variety of pallet and crate sizes handled.

Fork pivot. Allows the forks and carriage to pivot (rotate). Used for transporting and dumping specially designed hoppers.

Slip sheet atachment. Slip sheet attachments are used where slip sheets (a sheet of cardboard, paperboard, or plastic) are used rather than pallets. The slip sheet attachments has a push/pull mechanism that clamps onto the slip sheet and pulls the load onto a thin platform and then pushes the load off of the platform when the truck reaches the destination.

Paper roll clamp. Designed specifically for the handling of large paper rolls, the paper roll clamp clamps around the roll and also allows for a full 360 degree rotation.

Carton clamp. Operates like the paper roll clamp except the clamping surface is flat rather than circular.

Drum handling attachments. There are a lot of different designs for attachment used to handle 55 gallon drums. Some are smaller versions of a paper roll clamp while others may engage the upper rim of the drum, or the lower rings. Some drum attachments are capable of picking up multiple drums at the same time.

Prongs. A Prong is a specialized rod type attachment used for picking up rolls of materials such as carpet rolls, wire and cable spools, and rolled steel, by inserting the prong into the center of the spool.

Fork extensions. Fork extensions slide over the existing forks on the truck to allow you to pick up longer loads.

Height selector. A height selector is an option that allows you to preset certain fork heights to correspond with rack levels. This option is most commonly used on reach trucks working at heights above 20 ft.

Tilt control. Tilt control allows you to preset fork tilt angles.

Fuel Types

Tire Types

Cushion Tires are solid tires generally with no tread pattern (though tread patterns are available) designed for use indoors on smooth solid surfaces.

Pneumatic tires require air and are designed for use outdoors on uneven and loose surfaces. Pneumatic tire trucks will also have higher ground clearance which raises the center of gravity thus reducing its rated lift capacity.

Lift Capacity and Lift Height.

You will need to know the maximum weight and dimensions of the loads you will be handling as well as the maximum fork height needed to stack or rack the loads in order to determine the capacity of the vehicle needed. The lift capacity of a truck is affected by lift height and load size. A larger size load moves the center of gravity of the vehicle/load combination reducing the lift capacity as does the height the load is being lifted. Attachments also affect the capacity of a truck. Every lift truck is required to have a placard showing the rated capacities. If there are any changes made to the truck — like adding an attachment — the placard must be replaced with one showing the revised capacities. Why spend so much time on capacity? Why not just play it safe and get a higher rated truck? The answer is size. Bigger is not necessarily better in warehousing. A higher capacity truck will be physically larger and require larger aisles than a lesser one.

Mast Options

Single, double, triple, quad (reflects the number of sections or stages the mast has) these are the types of masts available . In many circumstances you will not need to make a choice here since the lift height will dictate the type of mast you will get, however, in trucks with very high lift heights you may have an option. Going to a quad mast instead of a triple, rated at the same height, will give you a shorter mast in the lowered position, eliminating overhead clearance issues. However, the more sections to the mast the more play it will have when extended (the wobble factor).

Aisle Types

Lift trucks are classified by the types of aisles they are designed to operate in. Wide Aisle and Narrow Aisle trucks are designed to turn in the aisle while Very Narrow Aisle trucks do not turn within the aisle.

Wide Aisle. Standard forklifts fall into this category of trucks designed to work in aisles greater than 11' wide.

Narrow Aisle (NA). Narrow aisle trucks operate in aisles of 8' to 10' and are generally stand up vehicles such as Reach Trucks.

Very Narrow Aisle (VNA). Very narrow aisle trucks operate in aisles less than 6' and often use guidance systems (wire, rail, or optical) to travel within the aisles. Types of VNA trucks are Order Selectors, Swing Mast, and Turret Trucks.
